Smart Irrigation Month is Here

The HEAT is definitely on!  Welcome Summertime!

You may have heard by now, that July has been deemed “Smart Irrigation Month” by the Irrigation Association since 2005, because that’s typically when the hottest temperatures occur (here in Central Texas, our hottest months are August and September). With high and hot temperatures come higher water use, it’s just a given. We still want our landscapes to look as good as they have the rest of the year, so we crank up the water.

This year, I’d like to challenge you to do something different. It’s been a slightly different year already: we actually experienced a winter (all Native Texans can appreciate that!!) AND it was a wonderful spring—again, that’s amazing since we usually go from winter straight to summer!  We didn’t have a 100-degree day until this last week and really haven’t needed to use the irrigation system until June.

In honor of Smart Irrigation Month, I’m going to ask you to something different by investing in your irrigation system and upgrade where necessary.  Don’t just turn it on and forget it all summer.  I want to focus on sprinkler heads and water pressure. The type of sprinkler head being used determines several things, like how long to water, where to locate the heads, and also how much water is being emitted and, most importantly, how well that water is being used by your landscape.

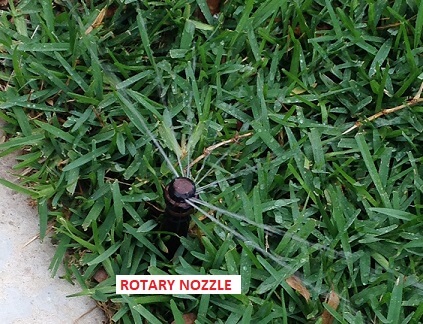

There are two main types of sprinkler heads—spray heads and rotor (or rotary) heads. Both are usually buried underground and pop-up when watering. Spray heads spray water the same piece of grass, or landscaping, the entire time they are popped up. Rotor heads turn to the left, right, or in a circle, when they pop-up and do not water the same place the entire time they are popped up.  They can have one large stream of water spraying out or smaller streams of water spraying.  With either pattern, they turn, versus being stationary. See the pictures on the right for what each look like.

Rotor heads are the more efficient of the two head types. Tests have shown that the water is distributed more evenly by rotor heads than spray heads. The same amount of water is being emitted close to the head as midway as at the furthest end of the water. Usually people want to replace rotors with sprays, but I urge them not to. Again, they are more efficient than traditional spray heads. Rotor heads are desirable to use in large areas—fewer heads are required to cover a large space since they spray water out a further distance than spray heads.

Traditional spray heads are not quite as efficient, mainly due to variations in water pressure and head spacing (specifically heads placed too far apart). Misting is commonly seen with spray heads—this is lots of “clouding” coming off the heads. This cloud, or misting, is water drops that are so small they are just floating away into the air, rather than going down onto the landscape. You are paying for this water and it’s just floating away. Not good. This means you have to run the system for a longer time to get water down onto the ground, which will get expensive and is just wasteful. This is caused by water pressure that is too high.

An aside here, “good” or appropriate water pressure for irrigation systems is between 35-60 psi.

High pressure can be remedied in two main ways: installing a pressure reducing valve (PRV) on the irrigation system, or replacing the nozzles with ones that adjust or compensate for the high water pressure. So…which is better? That’s a hard question to give a quick answer for.

The PRV is a good fix if the entire irrigation system is running with high pressure. It’s one device that is installed near the backflow prevention device in your yard. A licensed irrigator should be contacted to install this device.

Replacing nozzles is a great way to fine-tune the irrigation system; here, you can just replace nozzles in the zones that have the high misting. This is a little more time consuming because you need to find and purchase the correct nozzle types (full circle, half circle, etc) and then physically unscrew the old nozzles and screw on the new ones, but overall it’s pretty inexpensive. Of course, a licensed irrigator can be hired to do this work as well. There are several brands of nozzles that have built-in pressure compensation and can be ordered online or found in local irrigation stores.

Both types of pressure reducing qualify for the City’s Efficient Irrigation Rebate program. I highly encourage you to take advantage of it if you notice misting in your irrigation system!

Spruce Up Your Sprinkler System and Save

Spring has arrived! The onset of warmer weather can lead to an increase in landscape irrigation. Before you ramp up your watering, be sure to spruce up your irrigation system. System maintenance can help save you a lot of money and water! Cracks in pipes can lead to costly leaks, and broken sprinkler heads can waste water and money. You could be losing up to 25,000 gallons of water and more than $90 over a six-month irrigation season!

Now is the perfect time to spruce up your irrigation system. To get started, follow these four simple steps—inspect, connect, direct, and select:

Inspect. Check your system for clogged, broken, or missing sprinkler heads. Better yet, find an irrigation professional licensed by the Texas Commission on Environmental Qualify (TCEQ) to do the work for you. You can apply for a rebate from the City by having your system checked by a licensed irrigator.

Connect. Examine points where the sprinkler heads connect to pipes/hoses. If water is pooling in your landscape or you have large soggy areas, you could have a leak in your system. A leak as small as the tip of a ballpoint pen (1/32 of an inch) can waste about 6,300 gallons of water per month.

Direct. Are you watering the driveway, house, or sidewalk instead of your yard? Redirect sprinklers to apply water only to the landscape.

Select. An improperly scheduled irrigation controller can waste a lot of water and money. Update your system’s schedule with the seasons, or select a WaterSense labeled controller to take the guesswork out of scheduling. WaterSense labeled controllers also qualify for the City’s Efficient Irrigation Upgrade Rebate.

Don’t forget to add “sprinkler spruce-up” to your spring cleaning list this year. Learn more about maintaining a water-smart yard by visiting the U.S. Environmental Protection Agency’s WaterSense website at www.epa.gov/watersense/outdoor.

Find the City’s water conservation rebate details and application at www.roundrocktexas.gov/conservation.

Irrigation Rebates can Help you Reduce this Summer

Can you believe it’s July already?  July marks Smart Irrigation Month, and as I have in years past, I’m going to focus on providing you some tips to reduce your water use, or at least help you not waste water this July.  And, ideally, we’ll get some rain, which will help in reducing water use too!!

July is generally one of the hottest months of the year, which means, it’s one of the highest water use months of the year, which is why the Irrigation Association has designated this month as Smart Irrigation Month.

I’m going to focus on the two rebate programs that the City’s Water Conservation Program is offering for those of you with automatic irrigation (sprinkler) systems that are also direct water customers of the City.  You can take advantage of both to help you get that sprinkler system into top notch working order this year!

The first is a brand-new pilot program (being offered until September or until funds run out) for having your system checked out by a licensed irrigation company or irrigator.  This is essentially a “Spring Tune-Up” for your system (yes, even though it’s summer!).  If you hire a licensed company to come do a complete check up of the system and fix anything that needs to be fixed–broken heads, heads pointed the wrong way or are clogged, check the controller settings and whatever else is needed to get the system in tip-top shape, then you would be eligible for the rebate.  You can find the application and details for the Irrigation Check-Up program here.

Licensed companies can be found on the TCEQ’s website at this link.  You can also just check that the company has an LI number on their business card or website, or advertisement.  That LI stands for licensed irrigator, which by state law, a person must be to work on an irrigation system.

The second rebate program is the Irrigation Upgrade Rebate.  This rebate has been offered for several years now, but has undergone some recent changes to take advantage of newer technologies.  This program features rebates for the following type of changes, or upgrades, to your system:

  • reducing the water pressure on a system with high pressure by either installing a main pressure reducing valve (prv), or adjusting pressure at the zone valves, or replacing heads or nozzles with pressure reducing technology;
  • installing new technology in the form of weather sensors, such as rain, freeze, or soil moisture sensors;

    multi-stream nozzle

  • installing a new controller that is a WaterSense labeled controller (many new weather-based controllers qualify for this).  Look for the WaterSense label when purchasing at a store or online;
  • converting areas from traditional spray irrigation to drip irrigation;
  • capping off or permanently disabling a zone or zones;
  • converting traditional spray heads to more efficient multi-stream nozzles, or pressure reducing heads or nozzles; and
  • installing check valves on the lowest heads of your system that always look like they are leaking after the system turns off.  This is actually very normal and not a leak, it’s the low head drainage where the “extra” water in the pipe drains out after the system has turned off.  It can be prevented with sprinkler heads that have built-in check valves or installing a check valve in the existing head.

Of course, see the applications for complete details.  Neither of the programs are for the installation of a new system, only for the improvement of existing systems.  You can find those applications here or at www.roundrocktexas.gov/conservation under the rebate section.

Happy July and keep those landscapes water smart!













Smart Sprinklers for Smart Irrigation Month

So here we are in July again this year!  How did it arrive so fast and so hot??  We know in these hot summer months, we tend to use more water outdoors, which is why July is designated as Smart Irrigation Month by the Irrigation Association and endorsed by Governor Abbott.SmartIrrMonth

I don’t think anyone deliberately chooses to look silly or be wasteful by watering during or immediately after a huge rainstorm, or during the heat of the day.  For commercial properties, it’s bad for their image to look so wasteful, so I would think they’d be the first to jump on the efficient bandwagon.  Unfortunately, that’s not always the case.  This brings me to my topic for Smart Irrigation Month—Upgrading your Irrigation System.

Updating, or improving irrigation systems, in my experience, tend to happen mainly when other big yard activities are going on—installing a pool or a new patio or deck; replanting the sod or a huge remodel of all the landscaping in the yard.  I don’t really see folks upgrading their systems, just because there’s a new model of controller or sensor.  While irrigation is technology, apparently it’s not the cool technology that people invest in as frequently as their electronic devices.

I think it’s because we don’t often visually see them or think of them nearly as much as our phones, or portable devices.  They seem to do a good job—the grass is alive, so what’s to change?  Well, technology has come a long way in the last decade in irrigation systems, which can save you money in water costs, conserve water, water more to the plant’s needs, and maybe have a little cool factor when you talk about your yard with your friends!  Maybe!

The two main areas your controller can be smart is when dealing with the weather.  Sensors and controllers are the two areas that can help you with determining if the yard even needs to be watered.

  • Sensors are still around—rain sensors, freeze sensors, and soil moisture sensors are the main ones.
    baseline soil moisture sensor

    soil moisture sensor

    • A rain sensor turns off the irrigation system (if it’s running) after a specified amount of water has fallen or it delays the system from turning on after a specified amount of rain—so all of its actions are during or after the rain. There’s no weather forecasting, or determination of if watering is necessary.  They have to be installed in an unobstructed location (like a fence or roofline) so that rain can fall in it.  I’ve seen them under trees and under buildings!  But, it is better to have a rain sensor than nothing!  By the way, they’re pretty cheap—about $35-$75 retail.
    • Tremendous improvements have been made in the soil moisture sensor arena. A soil moisture sensor is actually buried in the ground about 6-inches deep (yes, you have to have that much soil for these to work!).  They take moisture readings from the soil to determine if the soil is dry enough to require the irrigation to run; if it determines the soil is wet enough, it doesn’t allow the system to run.  Ideally, you’d want more than one soil moisture sensor installed in your yard, one in sunny area and one in a shadier area, otherwise parts of your yard may be under- or over-watered.  It’s more accurate watering than just watering because it’s a Saturday.  It’s watering because the soil actually is dry.  They are a little more costly than rain sensors, but more effective use of water.
    • Freeze sensors do not allow an irrigation system to turn on when temperatures reach a specific degree, usually around 40° These aren’t that common to have at homes, because we just turn off our irrigation systems for the winter.  Commercial properties tend to water more year-round and would benefit from a freeze sensor to prevent the irrigation from freezing and causing a hazard.
  • Weather-Based Controllers–this is where things have really gotten interesting.Logo-WaterSense
    • There are several controllers on the market currently that take into account the actual weather, either with a weather-station that is installed at your home (it’s not too large), or a near-by weather-station that the controller can connect to thru WiFi.  That said, you would need to have a WiFi connection at your property that the controller can connect to.
    • The controller checks the weather forecasts daily, if not multiple times a day, to determine if the irrigation system needs to run or not.  It may delay the irrigation cycle if rain or other inclement weather is forecast.
    • These controllers need some extra set up time.  Once they are installed, they are not just go to go.  You have to spend a little time to enter in information about each irrigation station in your yard, like what type of sprinkler head it is, how much light it receives, landscape material, slope, and even more.  There is the very real possibility that using one of these controller can increase your water use, if it’s not set up properly.
    • Many of these “smart” controllers have online apps or websites to use.  The irrigation can now be controller from your desktop, laptop, tablet or phone!  It’s a little nicer than standing in your hot garage to make adjustments, which is pretty cool!
    • Look for a controller that is WaterSense approved.  That’s what is approved by the City’s rebate, as it’s been third-party tested to maintain water savings.

The City’s Efficient Irrigation Rebate provides a rebate of 75% of the purchase cost of a sensor or weather-based controller for your existing irrigation system, so if you don’t currently have a working one, please get one and apply for the rebate!



Smart Controllers

Now is the time of year to think about turning off your sprinkler system, if you haven’t already.  Remember, it’s about to be winter, plants go dormant, we’re having regular rainfall, cooler temps… you know all this.

one type of smart controller

one type of smart controller

So, it may seem like a strange time to think about sprinklers, but I wanted to see if you knew the City’s water conservation program offers rebates on various items to help make your sprinkler system more efficient?  One of those items is a smart, weather-based controller.

So, what is a smart controller?  Simply put, it’s a controller that takes into account the current weather, the weather forecast, the type of sprinkler head (drip, spray, rotor, etc), the plant material (grass, shrubs, trees, etc), and probably the slope of the yard, and the soil type to come up with a watering schedule that is truly personalized for your yard.  No more guessing how much time you need to set for each station!

The smart controller will come up with a personalized schedule, though it probably will need some tweaks.  Full-disclosure, I installed a smart controller at my own house back in March or April of this year.  However, with all the rain this spring, it didn’t actually run until July and at that point I really thought is was watering some areas way too long.  I had to go into the application on my phone and adjust some settings to reduce watering time.  However, I will say that my highest water bill this summer was in August for 8,200 gallons–so not bad at all!  The smart controller I have estimates the amount of water used (in gallons) each time it waters, and the numbers it was reporting for my yard were very high.  The estimate of gallons used isn’t too accurate in my case.

But, back to the point; really, it’s ideal to water when the plants actually NEED the water, not just because it’s a Wednesday (or whatever day of the week your controller is set for).  AND, since we’re not in water restrictions, this is the ideal time to try out one of these controllers.  The controller will determine when it’s best to water and for how long, although they all have options to select specific days to water if/when we are under water restrictions.  Maybe all the zones won’t be watered on the same day, that’s the beauty of these controllers.  ILogo-WaterSenset’s watering to the plant, not to a schedule.

Many smart controllers are also designed to be used over WiFi: on home computers, phones, tablets…which may make it easier to control and set up.  No more trying to figure out all those buttons, knobs, and programs!  Through the internet connection, or an on-site weather station, they determine the current weather conditions to come up with the watering schedule.

If your interested has been peaked in smart controller, visit the WaterSense website to learn more, and find a list of WaterSense approved controllers, that are also eligible for the City’s irrigation rebate.  The rebate expires when funding runs out, but I don’t anticipate that happening any time before August 2016.

Let’s start watering smart in 2016!

Watering in the Rain

Lots of rain happening of late, thanks to El Nino! It has delayed any watering in rain resizedoutdoor watering so far this year, which is great. If you happened to turn your irrigation system controller on before the rains came, hopefully you have a rain sensor (a.k.a. rain shut-off device) or other weather system that will prevent your sprinkler system from actually running while it’s raining. You don’t want to water in the rain! Let’s be honest, besides it being a waste of water, it really makes you look silly.

The Water Conservation program has been offering a rebate for rain sensors, freeze sensors, and other weather technology as part of our efficient irrigation rebate program for several years now. If you don’t have a rain sensor on your irrigation system, now’s the time to get one!

Now, a rain sensor like the one pictured, doesn’t predict when it’s going to rain. What it does is sense when rain is actually falling and stop the sprinklers from running if they are currently running, rain shut-offOR prevent them from turning on if they are scheduled to turn on shortly after the rain happens. Once the sensor dries out, it will allow the sprinklers to continue to operate according to its normal schedule.

There are sensors on the market that do predict, using live weather data, if it’s going to rain in our area, and prevent the sprinkler system from turning on. Those are slightly more expensive then the little one pictured above, but may be worth it to you. They use live weather data and your location (usually a zip code, address or GPS coordinates) to see if rain is expected for you and doesn’t allow the system to run if the chance of rain is greater than X percent. That X is usually a number you can adjust — like 30 percent. The irrigation rebate applies to this technology too.

So, install those rain shut-offs and let Mother Nature water the yard for you!

For more on rain sensors, watch my video!



July is Smart Irrigation Month, Pt 2: Sensors

SmartIrrMonthThe first thing I saw when I turned my computer on Friday morning was emails from co-workers and City residents voicing concern about the irrigation systems they saw running this morning-after receiving 3+ inches of rain!  It’s crazy, I know.

I don’t think anyone deliberately chooses to look silly or be wasteful by watering during or immediately after a huge rainstorm, they just don’t actively think about their irrigation system.  For commercial properties, it’s bad for their image to look so wasteful, so I would think they’d be the first to jump on the efficient bandwagon and make sure the irrigation is always working as efficiently as possible.  Unfortunately, that’s not always the case–and not just with commercial properties.  This brings me to my second topic for Smart Irrigation Month-Upgrading your Irrigation System.

Updating, or improving irrigation systems, in my experience, tend to happen mainly when other big yard activities are going on, such as installing a pool or a new patio, or deck; replanting the sod or a huge remodel of all the landscaping in the yard.  I don’t really see folks upgrading their systems just because there’s a new model of controller, or cool sensor.  While irrigation is technology, apparently it’s not the cool technology that people invest in as frequently as their portable, hand-held electronic devices.  I think it’s because we don’t visually see them or think of them nearly as much as our phones, or portable devices.  They seem to do a good job-the grass is alive, so what’s to change?  Well, technology has come a long way in the last decade in irrigation systems, which can save you money in water costs, conserve water, water more to the plant’s needs, and maybe have a little cool factor when you talk about your yard with your friends!

I don’t want this article to go too long, so I will focus only on sensors today.

Rain sensors are required on all newly installed irrigation systems since January 1, 2009.  Though they have been around many years prior to that, they generally weren’t installed very frequently even though they are relatively cheap.    sensor poor location edited

  • Sensors include rain sensors, freeze sensors, and soil moisture sensors.  All of these are separate devices that are wired into the main irrigation controller, they do not come installed as part of the controller.  Some controllers have a switch on them that says “sensor active” and “sensor bypass”, that doesn’t mean there is actually a sensor installed on your system.

A rain sensor turns off the irrigation system (if it’s running) after a specified amount of water has fallen or it delays the system from turning on after a specified amount of rain-so all of its actions are during or after the rain. There’s no weather forecasting, or determination of if watering is necessary. They have to be installed in an unobstructed location (like a fence or roofline) so that rain can fall in it. I’ve seen them under trees and under buildings! (see the picture for proof).  But, it is better to have a working rain sensor than nothing, as I wish some commercial properties would have this morning! By the way, they’re pretty cheap-about $35-$75 retail.

Tremendous improvements have been made in the soil moisture sensor arena. A soil moisture sensor is actually buried in the ground about 6-inches deep (yes, you have to have that much soil for these to work!). They take moisture readings from the soil to determine if the soil is dry enough to require the irrigation to run; if it determines the soil doesn’t require additional water, it doesn’t allow the system to run. Ideally, you’d want more than one soil moisture sensor installed in your yard, one in sunny area and one in a shadier area, otherwise parts of your yard may be under- or overwatered. It’s more accurate watering than just watering because it’s a Saturday. It’s watering because the soil actually is dry. They are a little more costly than rain sensors, but they provide a more effective use of water.



Freeze sensors do not allow an irrigation system to turn on when temperatures reach a specific degree, usually around 40° F. These aren’t that common to have at homes, because we just turn off our irrigation systems for the winter. Commercial properties tend to water more year-round and would benefit from a freeze sensor to prevent the irrigation from freezing and causing a hazard.



The City’s Efficient Irrigation Rebate provides a rebate of 75% of the purchase cost of a sensor for your existing irrigation system, so if you don’t currently have a working one, please get one and apply for the rebate!

When (Not) to Water, part 2

Rain, rain, come and stay!  Isn’t all this rain wonderful?  The plants and flowers in my yard are looking fantastic!  And everyone’s rain barrels are rain shut-offoverflowing!  Driving around town, I see plenty of great looking landscapes.  The best part is that we haven’t had to water our yards for a few weeks now, thanks to Mother Nature.

For those of us with automatic sprinkler systems that may forget to turn them off during rain episodes, I highly encourage you to purchase and install a rain sensor.  This will help save some water, save a little money, and certainly, save your image by not allowing your sprinklers to water during or just after a nice rainstorm.  I know I’ve seen many properties doing just that (watering while it’s raining)–and it drives me nuts!

Rain sensors prevent an irrigation system from turning on during or after a rain event, after a specified amount (you set this on the sensor) of water has fallen into it.  It then allows the system to turn back on and run according to its schedule after it’s dried out.  A sensor doesn’t stop the irrigation system from turning on when a rain storm is predicted, though there is technology out there that does just that.  That would be a weather station, that receives weather data several times a day to determine if watering is needed on any day or not.  One such sensor like this is called idd; all of the major irrigation manufacturers (Rainbird, HunterToro) have weather-based sensors that can be installed and set to water based more on weather conditions, or soil moisture, rather than just a set schedule.  This type of watering schedule is better for the landscape and can be modified to work with restrictions on watering days.

Any type of rain sensor is rebated by the City’s Water Conservation program, at 75% of the cost of the sensor.  Just submit the rebate application after the sensor is installed.  And if you haven’t yet turned off your irrigation controller, please go do it!

Learn a little more about rain sensors here:
